Place of Origin:
China
Brand Name:
OEM/ ODM/ YUEXIANKE
Certification:
UL/ CE/ ETL/ ROHS/ ANATEL
Model Number:
FTTH

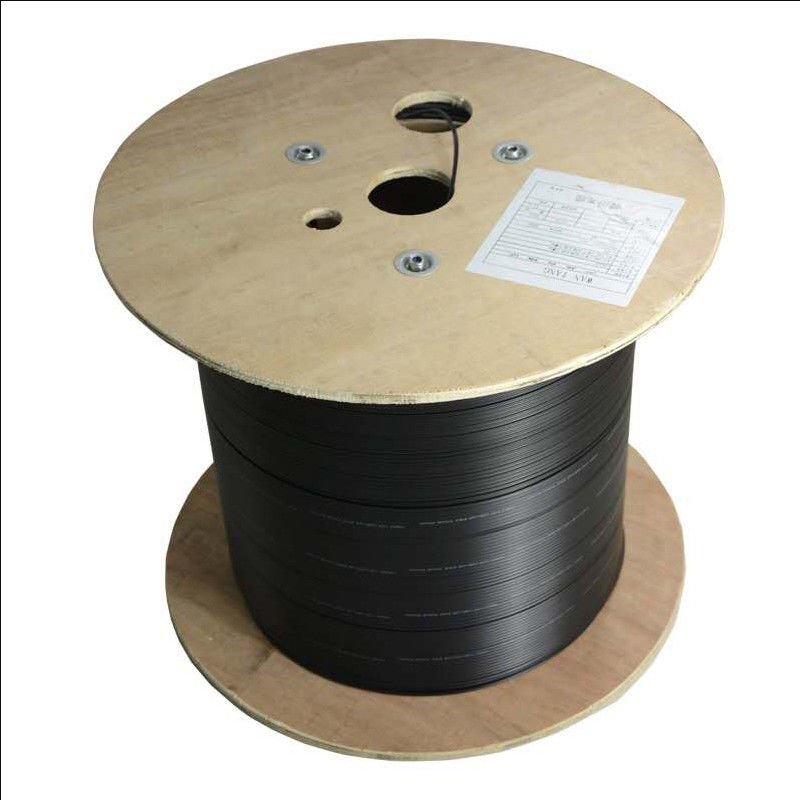

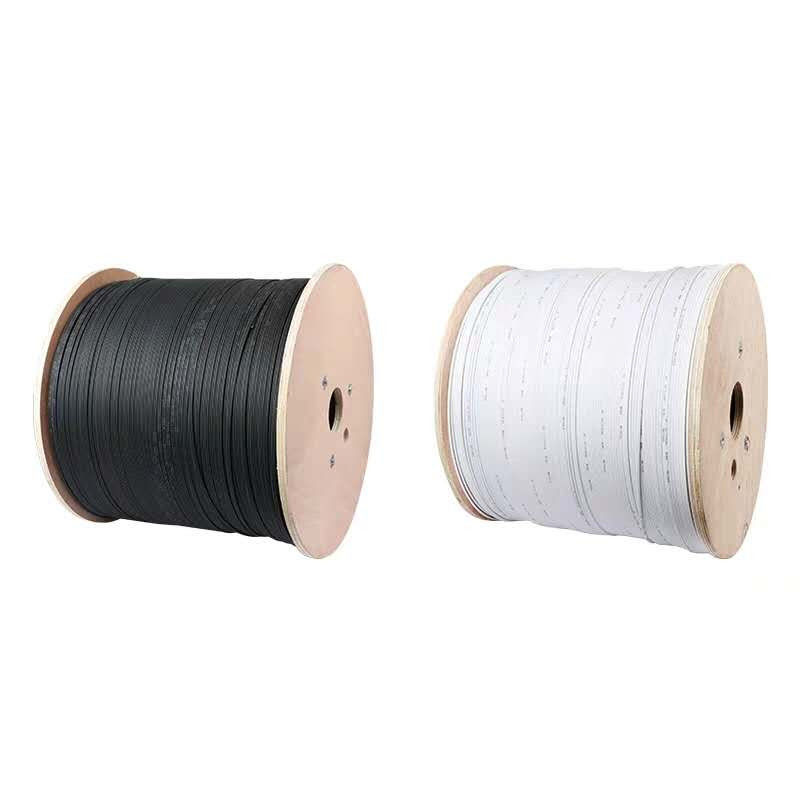

Fiber Optical Cable 1km 4 Core FTTH 1 2 4 Core G657A For Indoor/Outdoor Use
Product Description
Item Model: GJYXFCH (1/ 2 / 4 fibers)
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced member FRP are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
Application: FTTH
Features:
Special low-bend sensitivity fibre provides high bandwidth and excellent communication transmission property.
Two parallet FRP strength member ensure good performance of crush resistance to protect the fibre.
Simple structure, light weight and high practicability for 1 to 4 core SM Indoor FTTH Drop cable.
Novel flute design, easily strip and splice, simplify the installation and maintenance.
Low smoke, zero halogen and flame retardant sheath.
Single steel wire as the additional strength member ensures good performance of tensile strength
Technical Parameter:
| Number of fiber | 1~4 core | |
| strength member | Material | steel wire/FRP/KFRP |
| diameter | 2*0.45/0.5/0.5mm | |
| Self support Messenger wire | Material | steel wire |
| diameter | 1.0mm/7*0.4mm | |
| Outer sheath | material | LSZH/PVC |
| diameter | 1.8±0.2mm | |
| Cable size (Height * width) | 2.0(±0.1) mm × 5.0(±0.2)mm | |
| Cable sheath thickness | Max. 0.8mm/Min. 0.4mm | |
| Messenger sheath thickness | 0.5~0.7mm | |
| Items | Description | |
| Installation Temperature range(℃) | -20+60 | |
| Operation and transport temperature(℃) | -40+70 | |
| Min Bending Radius(mm) | Long term | 15D |
| Min Bending Radius(mm) |
Short term | 30D |
| Min allowable Tensile Strength(N) |
Long term | 400 |
| Min allowable Tensile Strength(N) |
Short term | 660 |
| Crush Load (N/100mm) | Long term | 1000 |
| Crush Load (N/100mm) | short term |
2200 |
