24 Core GYTS Outdoor Direct Buried Fiber Optic Cable Single Mode

24 Core GYTS Outdoor Direct Buried Fiber Optic Cable Single Mode

GYTS single mode fiber optic cable

24 Core single mode fiber optic cable

24 Core g652d fiber cable

Place of Origin:

China

Brand Name:

OEM/ ODM/ YUEXIANKE

Certification:

UL/ CE/ ETL/ ROHS/ ANATEL

Model Number:

GYTS

Contact Us
Request A Quote
24 Core GYTS Outdoor Direct Buried Fiber Optic Cable Single Mode
24 Core GYTS Outdoor Direct Buried Fiber Optic Cable Single Mode 24 Core GYTS Outdoor Direct Buried Fiber Optic Cable Single Mode
Product Details
Model NO:
GYTS
Strengthen Member::
Metallic
Cover Material::
PE/LSZH
Water Blacking Tape::
Yes
Type::
Singlemode
Fiber Count::
2-288 Cores
Certification:
ISO9001,ROHS
Fiber Type:
G652D,G657A2
Highlight:

GYTS single mode fiber optic cable

,

24 Core single mode fiber optic cable

,

24 Core g652d fiber cable

Payment & Shipping Terms
Minimum Order Quantity
1000 meters
Price
Negotiation
Packaging Details
1000 Meters
Delivery Time
3-7Work Day
Payment Terms
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability
100000 Meters/Day
RELATED PRODUCTS
Good price GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial online

GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial

Get Best Price
Good price Power Optical Cable OPGW Optical Fiber 4-48 Core 100 Cross Section Outdoor Composite Overhead Ground Wire Optical Cable online Video

Power Optical Cable OPGW Optical Fiber 4-48 Core 100 Cross Section Outdoor Composite Overhead Ground Wire Optical Cable

Get Best Price
Good price G657A Fiber Optical Cable online

G657A Fiber Optical Cable

Get Best Price
Good price 2B6A2 2 Core Fiber Cable online

2B6A2 2 Core Fiber Cable

Get Best Price
Contact Us
+86 18925126499
gzjingchang@126.com
Contact Now
Product Description

GYTS Outdoor Direct Buried 12 24 96 144 288 core Anti-rodent Single Mode Fiber Optic Cable



Fiber optic cable price per meter

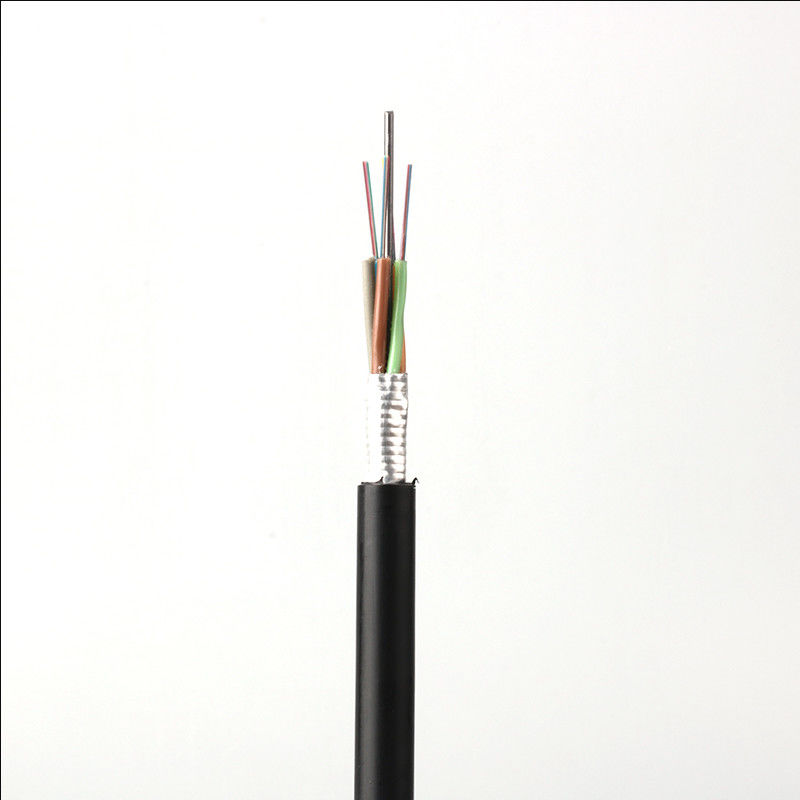

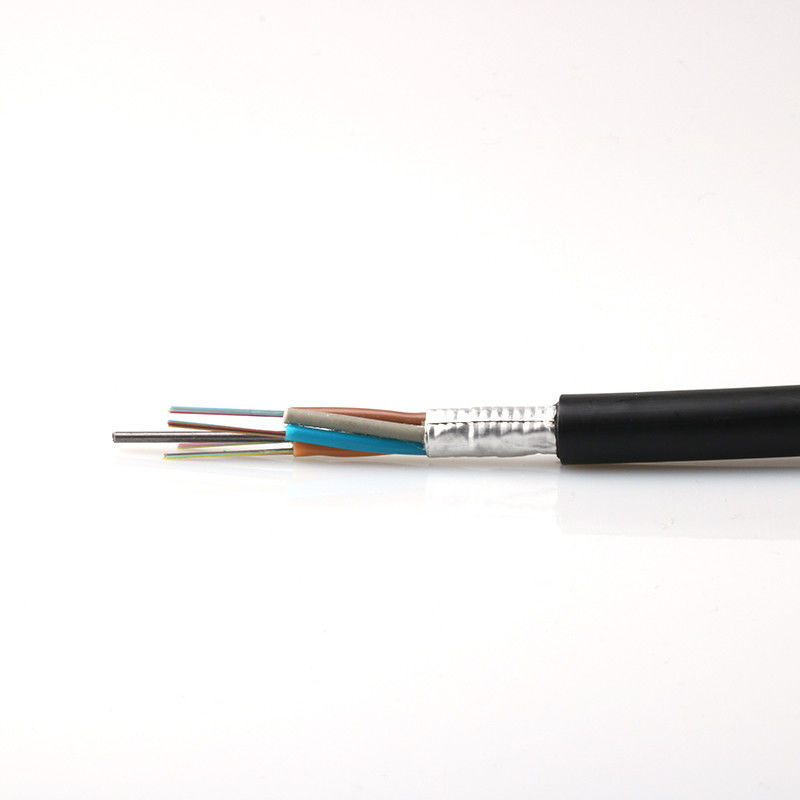

GYTS is made up of loose tube, central strength member, plastic coated steel tape and PE sheath. GYTS is same as GYTA except that we use the Plastic coated steel strip(PSP) not the APL. Loose tube is made of a high modulus plastic. The tubes are both filled with the water-resistant gel compound. We also use the phosphating steel wire as the central stength member here. The material of the sheath is PE, also can do the LSZH .
Fiber Parameters

2-96 fibers
98-288fibers
Max. Tension (N)
Short-term
1500
3000
Max. Tension (N)
Long-term
600
1000
Max. Crushing Resistance (N/100mm2)
1000
Temperature range(°C)
-40°C-- +70°C
Min. Bending Radius(mm)
Install
20D
Min. Bending Radius(mm)
Static
10D


G.652
G.655
50/125μm
62.5/125μm
Attenuation (+20℃)
@850nm


≤3.0 dB/km

@1300nm


≤1.0 dB/km

@1310nm
≤0.36 dB/km
≤0.40 dB/km


@1550nm
≤0.22 dB/km
≤0.23dB/km


Bandwidth (Class A)
@850nm


≥500 MHz·km
≥200 MHz·km
@1300nm


≥1000 MHz·km
≥600 MHz·km
Numerical Aperture



0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelengthλcc

≤1260nm
≤1480nm




Features



  • Low dispersion and attenuation
  • Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
  • Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
  • With small cable diameter, light cable weight, easily to layOperating Temperature: -40 ~ +60 °C



24 Core GYTS Outdoor Direct Buried Fiber Optic Cable Single Mode 024 Core GYTS Outdoor Direct Buried Fiber Optic Cable Single Mode 1

FAQ



1.What is your MOQ?

Could be coordinated if you have detail requirements.



2.How about your delivery date?
Delivery date is about 3-5days, it depends on the order quantity.

3.Can you supply sample for customers?
Of course, however the delivery cost will be charged on customer's account.

4.How about your price?
We are supplying products with very competitive price based on good performance.

5.Do you offer OEM Service?
We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce according to your requirment and description.
