Place of Origin:
Guangzhou,China
Brand Name:
OEM/ ODM/ YUEXIANKE
Certification:
ETL/ CE/ UL/ ANATEL/ RoHS
Model Number:
CAT6
Video
Video
Video

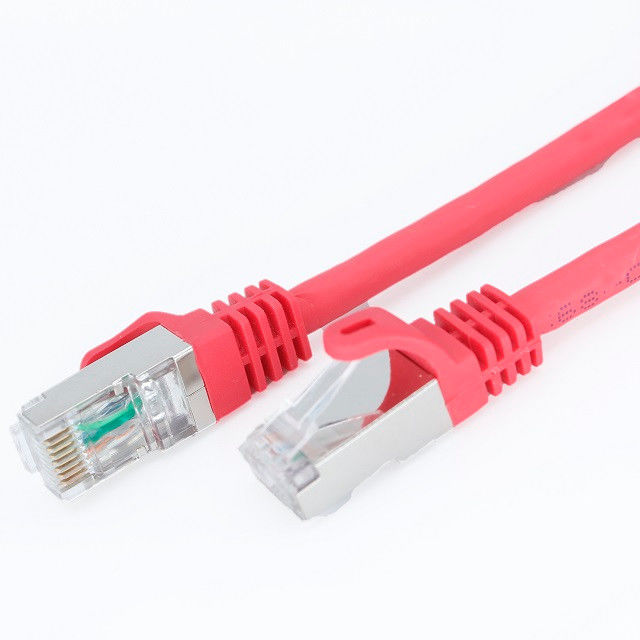

Low Price High Quality Pure Copper Or CCA UTP CAT6 Network PATCH LEAD
Length:0.5m/1m/1.5m/2m/3m/5m/8m/10m/12m/15m/20m/25m/30m/40m/50m
| Product Description |
Cat6 UTP copper network patch cord for computer device is an ultra-high quality category 6 unshield twisted pai r(utp) molded plenum patch cable.Utp is accepted for residential and general commercial installation. In SURELINK, you can get true cat6 performance with component certified cat6 patch cables.
Flat cables fit easily between cramped spaces improving the look of your home or office because they are flat and easy to hide. These flat cables are a perfect fit under carpets, up walls, and even behind furniture.
Specification
| Conductor Material: |
Bare Copper 99% | DC resistance Max.: | 93.8 Ω/km |
| Conductor Construction: |
Stranded copper 7*0.20 mm |
Insulation resistance Min.: |
100 MΩ/km |
| Gauge: | 23 AWG | Dielectric strength: | AC-500V 1 min no breakdown |
| Conductor Nom.O.D: |
0.61 mm | DC resistance unbalance: | Max 2% |
| Insulation Material: | HDPE | Input impedance: | 100±15Ω @4-100MHz |
| Sheath Material: |
PVC | Maximum tension: | 110 N |
| Sheath External O.D.: |
6.3 ± 0.4 mm | Elongation: | ≥100 % |
| Sheath Sheath Color: |
Red | Minimum bending radius: | 8x outside diameter |
| Sheath Plug Housing: |
Clear polycarbonate, 94V-0 Rate |
Operating temperature: | -20°C to 60°C |
| Sheath Terminal: |
Phosphor bronze 3~50U gold plating |
Weight: |
35.7 KGS/1000m |
